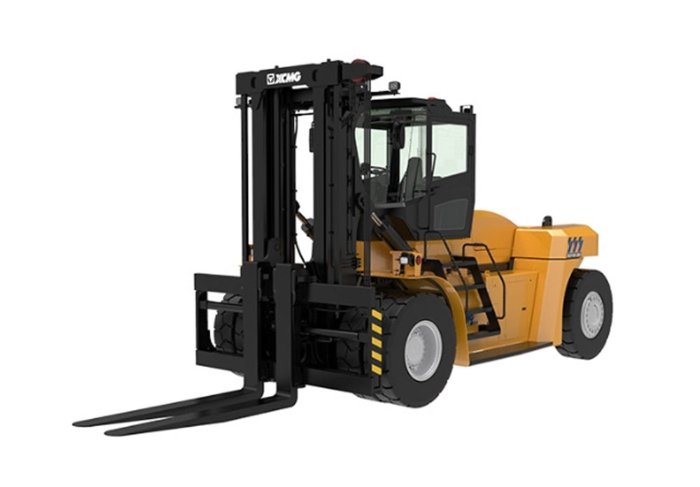

Counterbalanced forklift XCF3512K

Counterbalanced forklift XCF3512K

Counter-balanced Forklift  is Mainstream configuration.safe and reliable. comfortable operation. energy saving and high efficiency. convenient maintenance.Counter-balanced forklift truck is not only suitable for loading and unloading of goods and short distance transportation, but also can undertake the auxiliary maintenance, disassembly and installation of important equipment.  It can also be used to handle steel coils, bulk materials, concrete, logs, 20 ‘containers and other materials with special tools.It applys to logistics areas such as freight yards, warehouses, ports, docks, railway and highway transfer stations

Overall weight

45000kg

Rated capacity

35000kg

Maximum lifting height

4000mm

Maximum travelling speed (unloaded\loaded)

22/24km/h

Maximum lifting speed (unloaded\loaded)

245/230km/h

Maximum gradeability(loaded)

0.23

Dimensions without fork

6760×3460×4120

Wheel base

4650mm

Load center

1200mm

Minimum turning radius

6360

Type of mast Secondary standard type

/

Fork dimensions

2440×300×115mm

Fork adjustment range

920-2850mm

Optional

/
